A three-level inverter is also known as a Neutral Point Clamped (NPC) inverter. It acts as the core power conversion unit for modern medium and high-voltage VFD systems. Traditional two-level inverters only output two voltage states. In contrast, standard three-level inverters produce three stable levels: +VDC/2, 0, and -VDC/2. This unique structure delivers better power quality, higher voltage tolerance and more reliable performance for heavy-duty industrial applications.
Many harsh industrial fields rely on stable variable frequency equipment. These fields include mining, marine engineering, power generation and petrochemicals. Ordinary two-level inverters cannot handle long-term high-voltage and high-load working conditions. SUNSIN full-series medium and high-voltage VFDs adopt mature optimized three-level topology. They run stably for extended periods in harsh environments and deliver excellent energy-saving performance.
Basic Structure of a Three-Level NPC Inverter
You need to understand its core structure to grasp the three-level inverter working principle. A typical NPC three-level inverter main circuit includes DC-link capacitor banks, power switches, clamping diodes and output filter circuits. Each phase arm uses four power switches and two clamping diodes. This hardware setup is essential for three-level voltage output.
Series-connected capacitors split the DC bus voltage into two equal parts. This forms a stable neutral midpoint for the inverter system. Clamping diodes sit between switch bridge arms and the neutral point. They firmly clamp the output voltage to zero potential. Each power device only withstands half of the total DC bus voltage. This design lowers voltage stress and component breakdown risks. It is why three-level VFDs suit medium and high-voltage industrial scenarios.
Two-level inverters feature simple circuit structures. Three-level topology uses more precise circuit logic. It adds a moderate number of switching devices. It also outputs graded voltage waveforms effectively. This design reduces harmonic distortion and boosts overall operating efficiency.
Three-Level Inverter Working Principle & Core Operating States
The three-level inverter working principle depends on accurate switch control. Each phase controls four switching devices to generate three distinct voltage levels against the DC neutral point. The system applies strict interlocking switching logic. This rule prevents bridge arm short circuits and ensures safe, stable operation.
1. Positive Level Output (+VDC/2)
Turn on the upper two switches and turn off the lower two switches of the phase arm. The output terminal connects to the positive DC bus pole. The inverter outputs the +VDC/2 voltage level. The clamping diodes remain off in this state. Current flows steadily from the DC positive terminal to the load. This process forms the positive half-cycle of the AC sine waveform.
2. Zero Level Output (0V)
The zero-level output is the most unique feature of NPC three-level inverters. It clearly distinguishes three-level models from traditional two-level inverters. Turn on the middle two switches and turn off the upper and lower switches. The clamping diodes conduct and fix output voltage at neutral point potential. Zero-voltage output smooths voltage transitions. It eliminates sudden voltage jumps and suppresses voltage spikes and electromagnetic interference.
3. Negative Level Output (-VDC/2)
Turn on the lower two switches and turn off the upper two switches of the phase arm. The output terminal connects to the DC bus negative pole. The system outputs the -VDC/2 negative voltage level. This state matches the negative half-cycle of the AC waveform. It works with positive and zero levels to complete full-cycle AC power conversion.
Optimized SVPWM Modulation Technology for Three-Level Inverters
High-precision modulation technology supports stable three-level inverter operation. SUNSIN medium and high-voltage three-level VFDs adopt upgraded three-level SVPWM technology. This technology improves on traditional SPWM algorithms. It accurately allocates three-level voltage vector action time. It also optimizes switching sequences for cleaner output waveforms.
Standard NPC inverters often face neutral point potential offset issues. SUNSIN optimized SVPWM solves this common problem effectively.

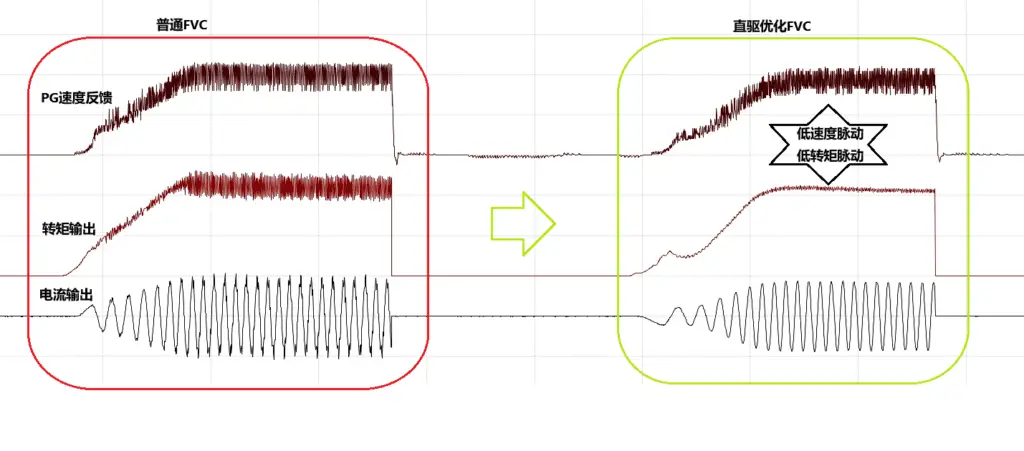

Three-level SVPWM outperforms traditional two-level PWM modulation. It delivers lower switching frequency loss and smaller current harmonic distortion. Its AC output waveforms are far more stable. It fully meets high-precision power supply demands in industrial scenarios.
Three-Level Inverter vs Two-Level Inverter | Core Differences
Most low-voltage general inverters use two-level topology. Medium and high-voltage industrial applications prefer three-level VFDs. Their performance differences stem from structural design and working principles. The key gaps are listed below.
1. Dramatically lower voltage stress Three-level inverter switches only bear 50% of the total DC bus voltage. Two-level devices withstand full bus voltage. This advantage supports stable operation in 6kV and 10kV high-voltage systems. It greatly improves equipment safety and component tolerance.
2. Far lower harmonic distortion Three-level stepped waveforms are closer to standard sine waves. They reduce THD by over 40% compared with two-level inverters. This cuts motor harmonic loss and equipment overheating. It fully complies with strict industrial power quality standards.
3. Reduced switching loss & EMI Three-level topology halves single-step voltage jump amplitude. It significantly lowers switching power loss and electromagnetic interference. It improves overall equipment efficiency and enables long-term energy-saving operation.
Core Advantages of Industrial Three-Level VFDs
Advanced NPC three-level topology empowers SUNSIN medium and high-voltage inverters with unique strengths. These products adapt perfectly to heavy-load, continuous and harsh industrial working conditions. The core advantages are as follows.
1. Ultra-high operational stability Graded voltage output reduces voltage stress on power devices. It lowers equipment failure rates effectively. The VFDs support 24/7 uninterrupted operation. They fit mining fans, water pumps, marine power units and power plant auxiliary equipment.
2. Excellent energy-saving performance Optimized sine wave output reduces invalid power and motor reactive loss. It achieves a 15%–35% comprehensive energy-saving rate for industrial equipment. It effectively cuts long-term enterprise operating costs.
3. Strong harsh environment adaptability Three-level topology features powerful anti-interference performance. It runs stably in high-temperature, humid, dusty and corrosive environments. It covers mining, petrochemical, marine and other extreme industrial scenarios.
4. Low long-term maintenance cost Low-harmonic operation protects motors, cables and distribution devices. It slows component aging and reduces equipment fault frequency. It greatly lowers later maintenance and replacement expenses.
Industrial Application Scenarios
Reliable three-level inverter principles make three-level VFDs a mainstream choice for high-voltage frequency conversion upgrades. Typical applications include mining heavy equipment, marine power systems and thermal power plant auxiliary units. They also serve oil and gas transmission and metallurgical fan and pump systems. Unlike ordinary low-voltage inverters, three-level drives focus on high stability and energy efficiency. They fully match the operating features of industrial heavy-load equipment.
Conclusion
The NPC three-level inverter upgrades industrial power conversion with its neutral point clamping structure. Its three-level graded output outperforms traditional two-level inverters.
