Mining Drive Industry

Mining Drive Solutions

Large open-pit and underground mines worldwide adopt SUNSIN three-level MV/HV VFDs to cut power consumption, boost production efficiency and lift overall system value. We deliver customized drive solutions for belt conveyors, mine hoists, winches, underground emulsion pumps, mining fans and drainage pumps to satisfy all coal and mineral mining demands.

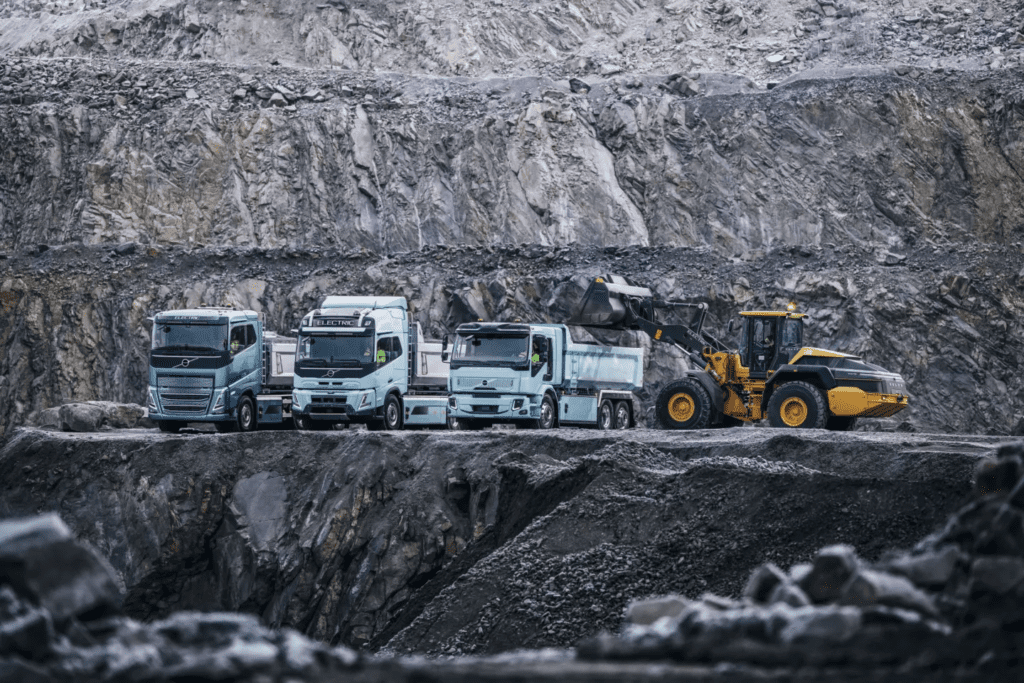

Mining VFD Series
Mining VFD Series

SUNSIN Mining VFD Series

Industry-specific Variable Frequency Drives for Underground & Open-Pit Mines
Deliver stable torque, intelligent speed regulation, 25%–65% energy saving and full safety protection.

SUNSIN VFD - What We Do

What We Do

One‑stop medium‑high‑voltage variable‑frequency drive service for marine, mining and offshore‑industry

VFD R& D & Manufacturing

Self‑developed three‑level medium‑high‑voltage VFD with low‑harmonic heavy‑duty driving‑technology

Custom Drive‑System Solution

Custom‑made control logic, communication protocol and torque parameter for complicated working‑condition

Harsh‑Environment VFD

Salt‑fog‑proof, shock‑resistant and explosion‑proof variable‑frequency drives for offshore facilities

Electrical Cabinet Integration

Complete‑set cabinet design covering VFD, PLC, human‑machine screen and safety‑protection modules

Global After‑sales Support

Remote commissioning, fault diagnosis and long‑term parameter‑optimization service around the clock

Global Shipment & Delivery

Sample‑order, trial‑order and large‑scale project supply with stable production cycle

Main Mining Application Scenarios

SUNSIN develops rugged mining-grade VFDs to offer reliable, energy-saving drive solutions for global underground and open-pit mines.

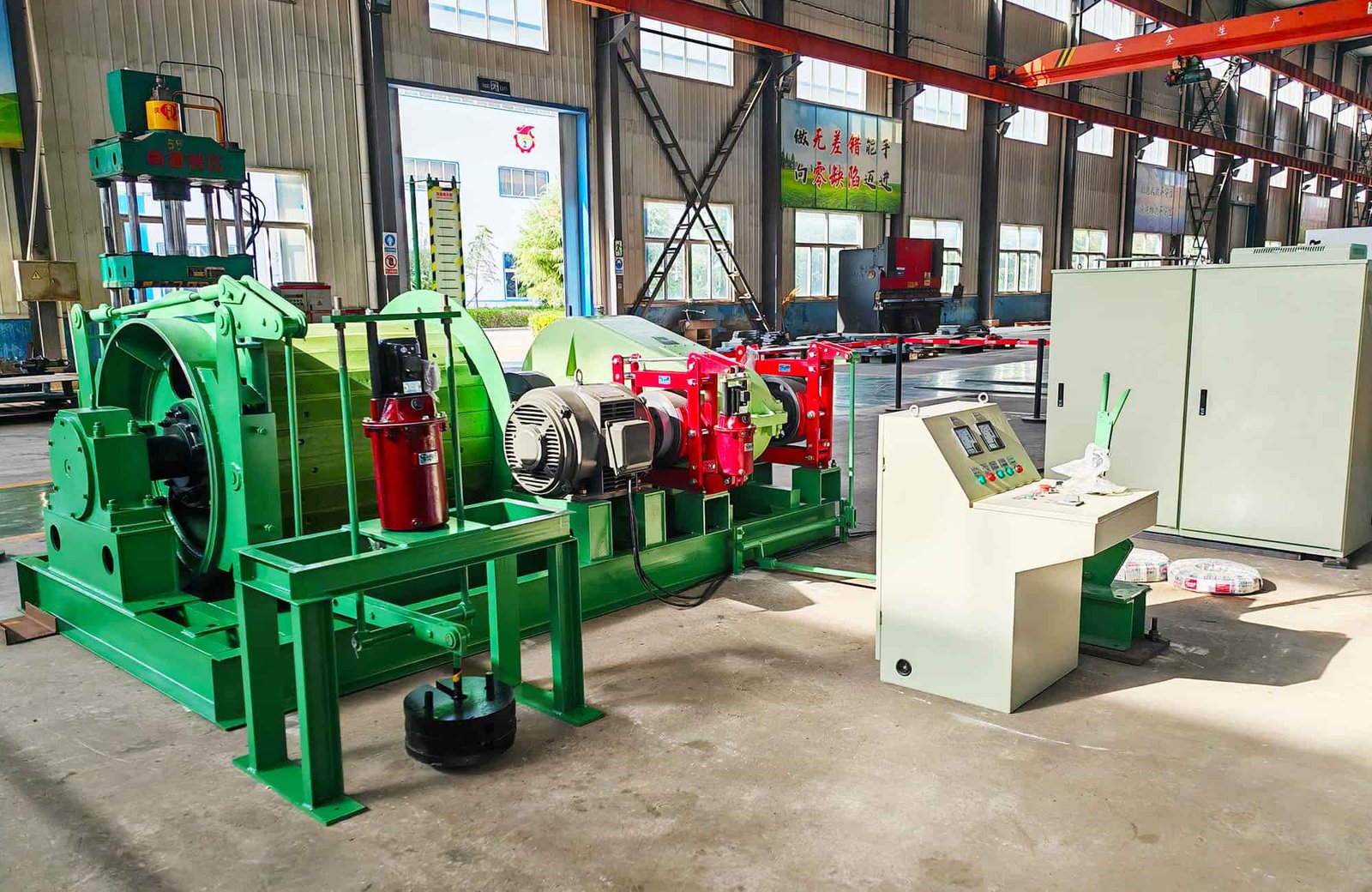

Mine Hoists & Lifting Winches

1. Mine Hoists & Lifting Winches

200% ultra-high low-frequency torque for heavy full-load startup; S-curve soft start/stop eliminates cable impact. Optional four-quadrant energy feedback recycles gravity power to cut electricity cost. SUNSIN MV3000 medium voltage series for 6kV/10kV large hoists.

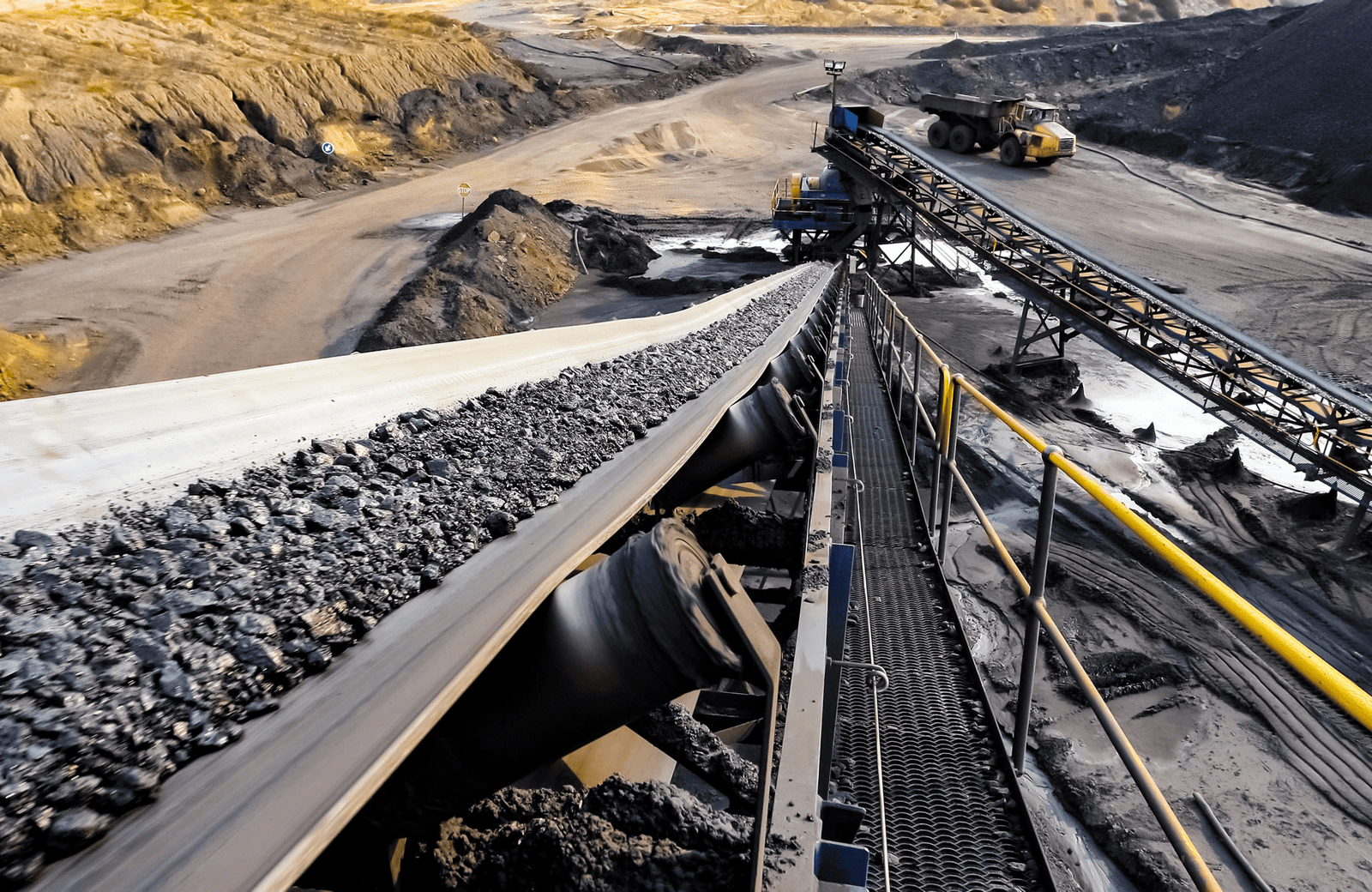

2. Long-Distance Belt Conveyors

Master-slave multi-motor synchronous control & automatic power balance. Gentle soft startup avoids belt tension fracture, anti-slip and overload protection for long-distance ore transportation. Matched MV2000 heavy-duty VFD.

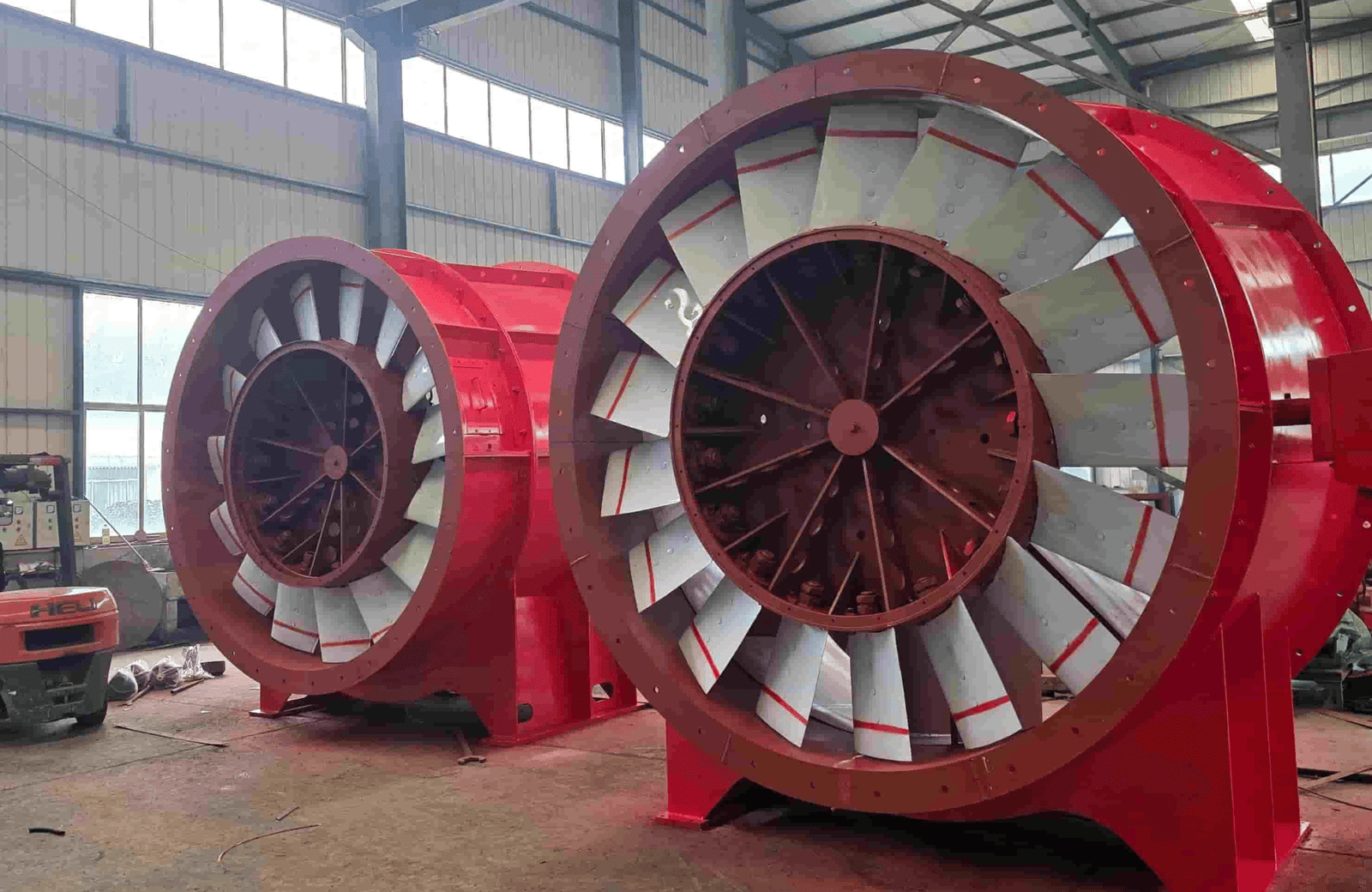

3. Main Mine Ventilation Fans

Real-time automatic air volume adjustment linked to underground gas and air pressure data. Reduce idle power loss by 30%–60% to guarantee underground ventilation safety. LV800 mining VFD with built-in PID constant air pressure control.

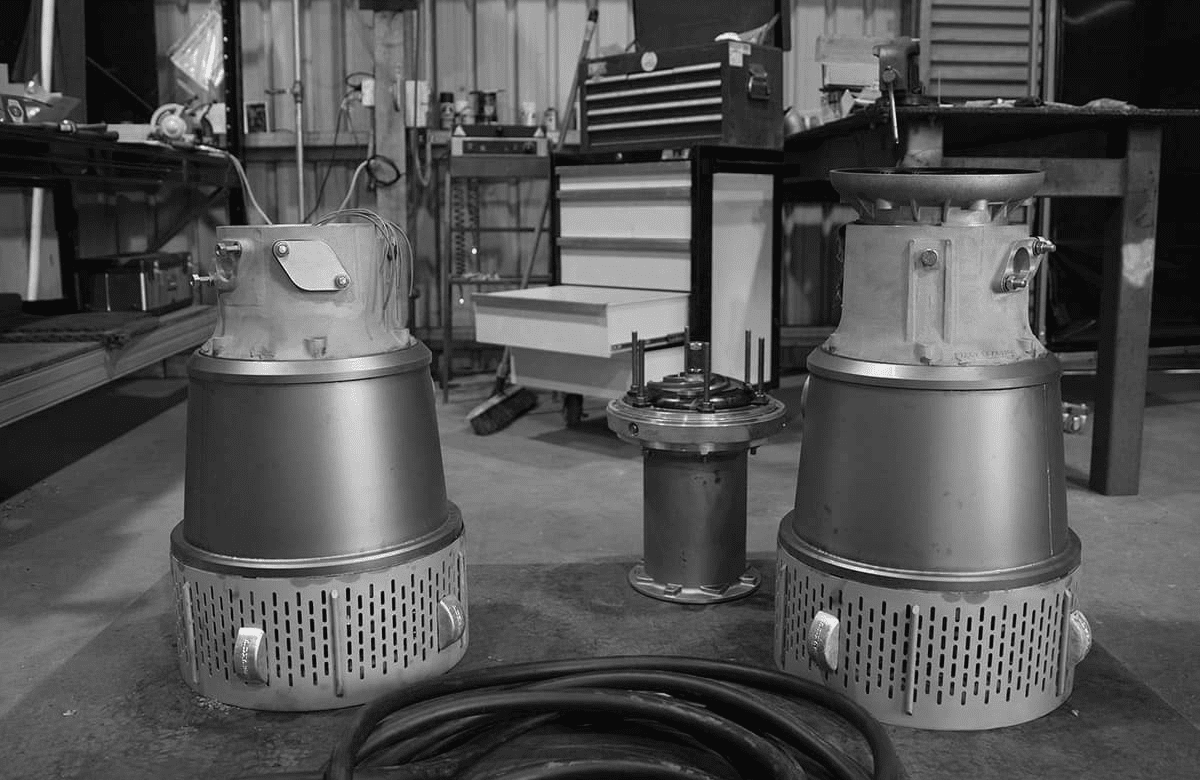

4. Underground Dewatering Pump Sets

Adaptive flow regulation following water inflow, constant pressure automatic drainage cycle. Avoid frequent motor start-stop and water hammer damage. Sealed dustproof cabinet fits humid tunnel conditions.

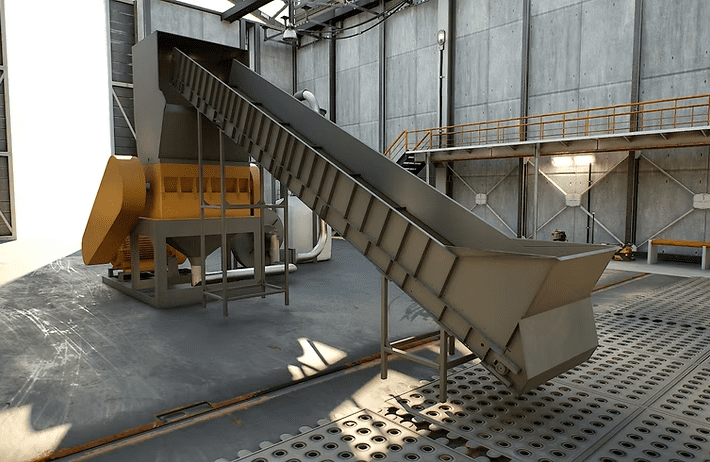

5. Crushers & Grinding Mills

150% rated overload lasting 60s to withstand irregular ore impact loads. Buffer startup protects gearboxes and rollers, stable speed adjustment to prevent blockage. MV2000 impact load dedicated model.

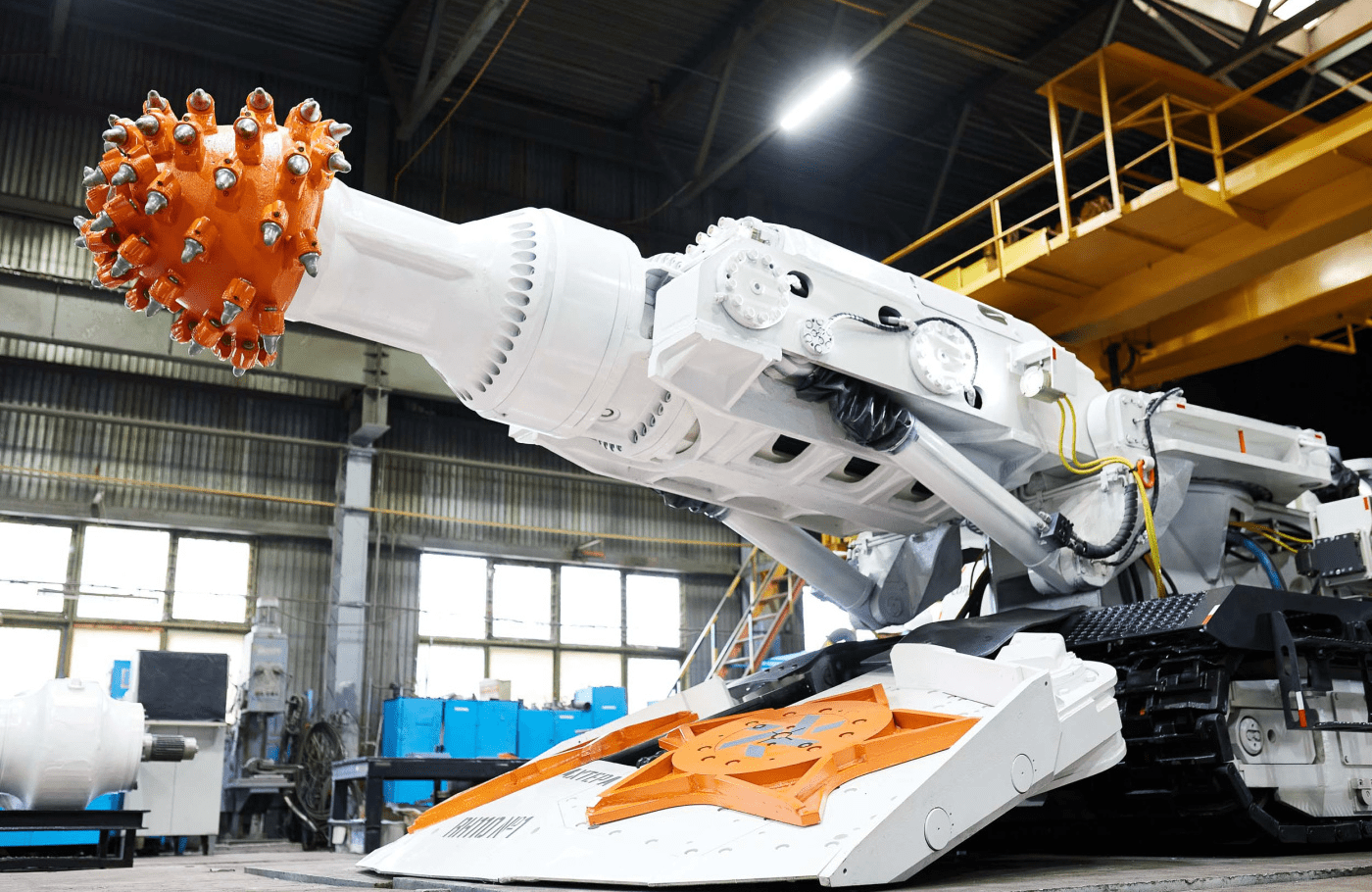

6. Roadheaders & Shearers

Flameproof XM series with complete mine explosion-proof certificates for gas coal mines. Fully sealed anti-dust structure, instant stall & overload protection to adapt to variable rock cutting loads.

Frequently Asked Questions | SUNSIN Mining VFD

Frequently Asked Questions

Common technical questions about SUNSIN mining medium & high voltage VFD

Q: Can SUNSIN mining VFD work in gas-containing underground coal mines?
A: XM flameproof intrinsically safe models with full mine explosion-proof certificates are available for Class I gas mine working faces.
Q: What communication protocols support mine centralized control?
A: Support standard industrial protocols including Modbus RTU/TCP, Profibus-DP, Ethernet/IP and optional Mine-specific CAN bus for underground central monitoring system.
Q: What is the overload capacity for heavy mining loads?
A: Standard heavy-duty specification supports 180% rated overload for 60s, 200% zero-speed startup torque, fully matching crushers, hoists and long belt conveyors.
Unified CTA Demo | SUNSIN

Custom heavy-duty, dust-proof and low-harmonic VFD solutions for your open pit or underground mineral mining projects. Contact our mining industry technical engineer for parameter matching and energy-saving transformation plans.

Contact Our Engineer
